Product detail
CR436 4U 36-Bay Storage Server Chassis

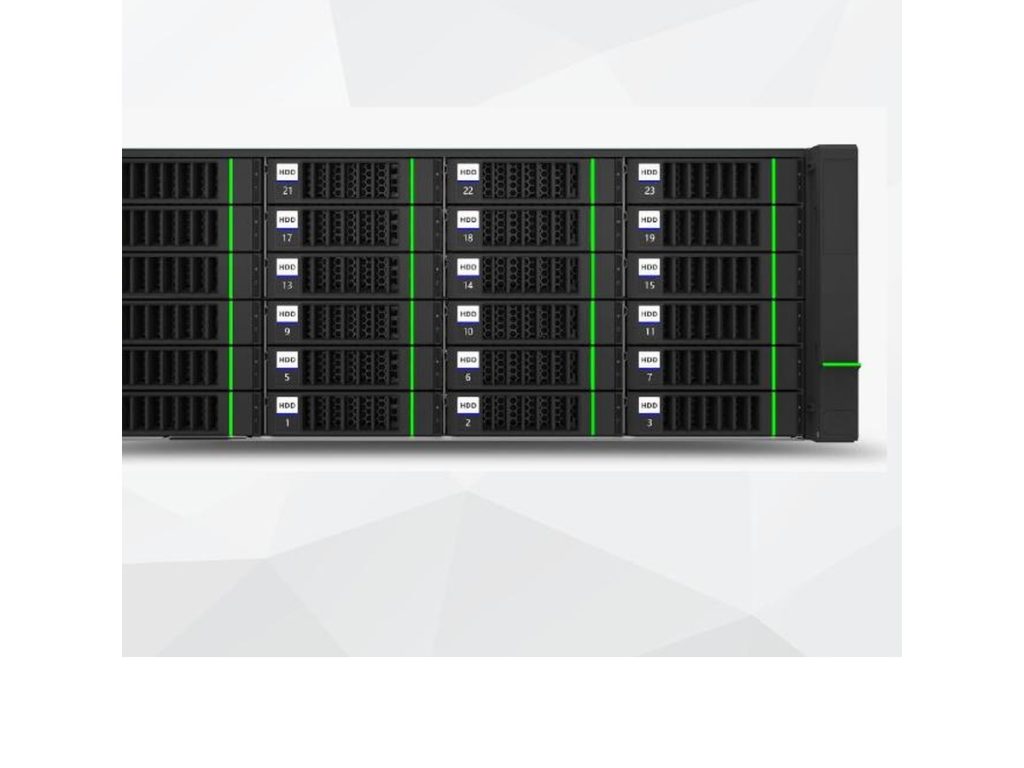

CR436-700-HE is a production server chassis platform for buyers who need a documented fit, serviceable drive access, and a clear configuration path before ordering. The product image is taken from HY Technology’s 2026 server chassis catalog.
Verified configuration
| Model / variants | CR436-700-HE |
|---|---|
| Form factor | 4U rack-mount |
| Dimensions | 700 x 436 x 174 mm (L x W x H) |
| Drive size and bays | 36 x 3.5-inch/2.5-inch hot-swap SAS/SATA bays + 2 x internal 2.5-inch bays; optional rear 2 x 2.5-inch hot-swap bays |
| Backplane / interfaces | 12Gb/s SAS/SATA backplane with SGPIO support |
| Motherboard compatibility | E-ATX / ATX / Micro-ATX |
| Hot-swap method | Hot-swap drive and fan modules with quick-release access |
| Cooling | 8 x 8038 hot-swap high-speed PWM fans |
| Power supply | Single or redundant PSU support |
| Material | Premium SGCC hot-dip galvanized steel |
| Expansion / GPU support | 7 x half-height PCIe slots |
| Typical applications | High-capacity storage, cold storage, archive, and backup server deployments |
Buyer questions
Which server drive tray fits this model?
Confirm the target drive size, backplane type, and original tray or server part number. HY can check the tray fit against the chassis configuration before quotation.
Does this chassis support 2.5-inch SAS and SATA drives?
Compatibility depends on the listed bay type and backplane. Send the drive interface, drive height, and target quantity so HY can confirm the correct SAS, SATA, or NVMe option.
What information is needed for a bulk quotation?
Send the model or variant, quantity, destination country, required backplane, PSU redundancy, motherboard or GPU platform, and packaging requirements. HY can then confirm availability, lead time, and the export quotation.
Recommended sourcing use: High-capacity storage, cold storage, archive, and backup server deployments.
| Model | CR436-700-HE |
|---|---|
| Form Factor | 4U rack-mount | 700 x 436 x 174 mm (L x W x H) |
| Drive Bays | 36 x 3.5-inch/2.5-inch hot-swap SAS/SATA bays + 2 x internal 2.5-inch bays; optional rear 2 x 2.5-inch hot-swap bays |
| Board Support | E-ATX / ATX / Micro-ATX |
| Cooling | 8 x 8038 hot-swap high-speed PWM fans |
| Material | Premium SGCC hot-dip galvanized steel |
| Dimensions | 700 x 436 x 174 mm (L x W x H) |
| Backplane / Interfaces | 12Gb/s SAS/SATA backplane with SGPIO support |
| Hot-Swap Method | Hot-swap drive and fan modules with quick-release access |
| Power Supply | Single or redundant PSU support |
| Expansion / GPU Support | 7 x half-height PCIe slots |
| Typical Applications | High-capacity storage, cold storage, archive, and backup server deployments |
| Compatible Models | E-ATX / ATX / Micro-ATX |
