CR224 2U 24-Bay NVMe Hot-Swap Server Chassis

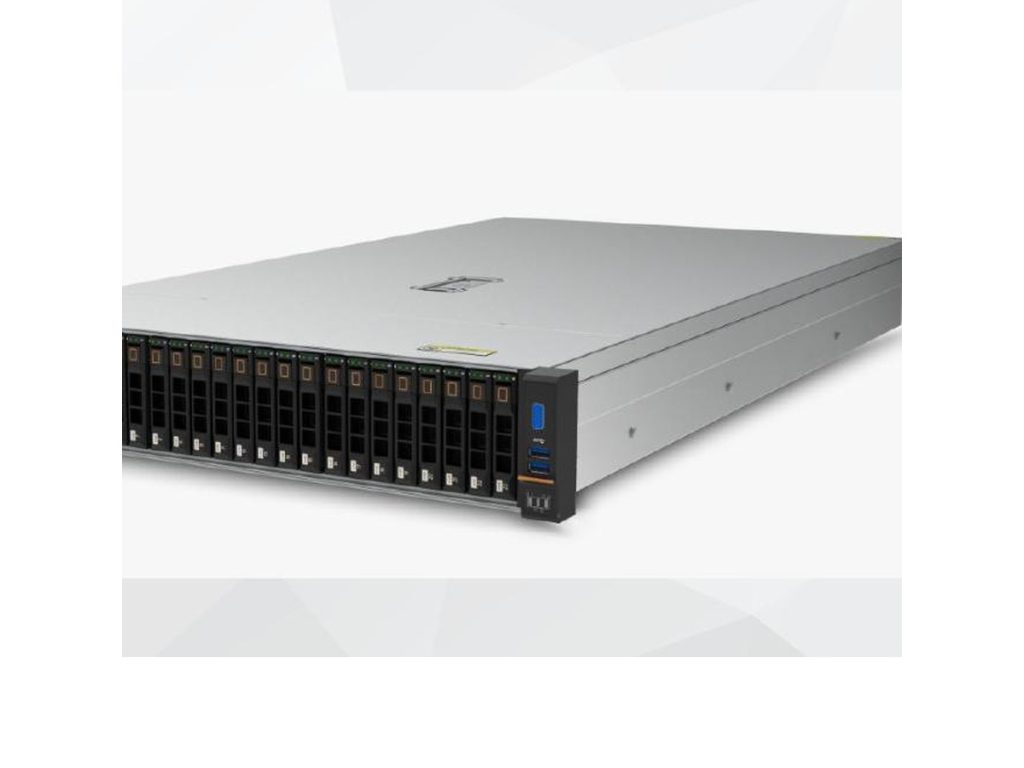

CR224-666-HN08, CR224-666-HN16, CR224-666-HN24 is a production server chassis platform for buyers who need a documented fit, serviceable drive access, and a clear configuration path before ordering. The product image is taken from HY Technology’s 2026 server chassis catalog.
Verified configuration
| Model / variants | CR224-666-HN08, CR224-666-HN16, CR224-666-HN24 |
|---|---|
| Form factor | 2U rack-mount |
| Dimensions | 666 x 436 x 87 mm (L x W x H) |
| Drive size and bays | 24 x 2.5-inch hot-swap NVMe bays; optional rear 2 x 2.5-inch hot-swap bays |
| Backplane / interfaces | NVMe backplane with 12 x MCIO connectors and SGPIO support; supports NVMe Gen5 SSDs |
| Motherboard compatibility | E-ATX / ATX / Micro-ATX |
| Hot-swap method | 24 front NVMe hot-swap bays with modular quick-release service access |
| Cooling | 4 x 8038 hot-swap high-speed PWM fans |
| Power supply | Single or redundant PSU support |
| Material | Premium SGCC hot-dip galvanized steel |
| Expansion / GPU support | 7 x half-height PCIe slots; optional rear conversion |
| Typical applications | High-speed NVMe storage, AI data nodes, and performance-focused data center systems |
Buyer questions
Which server drive tray fits this model?
Confirm the target drive size, backplane type, and original tray or server part number. HY can check the tray fit against the chassis configuration before quotation.
Does this chassis support 2.5-inch SAS and SATA drives?
Compatibility depends on the listed bay type and backplane. Send the drive interface, drive height, and target quantity so HY can confirm the correct SAS, SATA, or NVMe option.
What information is needed for a bulk quotation?
Send the model or variant, quantity, destination country, required backplane, PSU redundancy, motherboard or GPU platform, and packaging requirements. HY can then confirm availability, lead time, and the export quotation.
Recommended sourcing use: High-speed NVMe storage, AI data nodes, and performance-focused data center systems.
| Model | CR224-666-HN08, CR224-666-HN16, CR224-666-HN24 |
|---|---|
| Form Factor | 2U rack-mount | 666 x 436 x 87 mm (L x W x H) |
| Drive Bays | 24 x 2.5-inch hot-swap NVMe bays; optional rear 2 x 2.5-inch hot-swap bays |
| Board Support | E-ATX / ATX / Micro-ATX |
| Cooling | 4 x 8038 hot-swap high-speed PWM fans |
| Material | Premium SGCC hot-dip galvanized steel |
| Dimensions | 666 x 436 x 87 mm (L x W x H) |
| Backplane / Interfaces | NVMe backplane with 12 x MCIO connectors and SGPIO support; supports NVMe Gen5 SSDs |
| Hot-Swap Method | 24 front NVMe hot-swap bays with modular quick-release service access |
| Power Supply | Single or redundant PSU support |
| Expansion / GPU Support | 7 x half-height PCIe slots; optional rear conversion |
| Typical Applications | High-speed NVMe storage, AI data nodes, and performance-focused data center systems |
| Compatible Models | E-ATX / ATX / Micro-ATX |
