CR412 4U 10-GPU Server Chassis

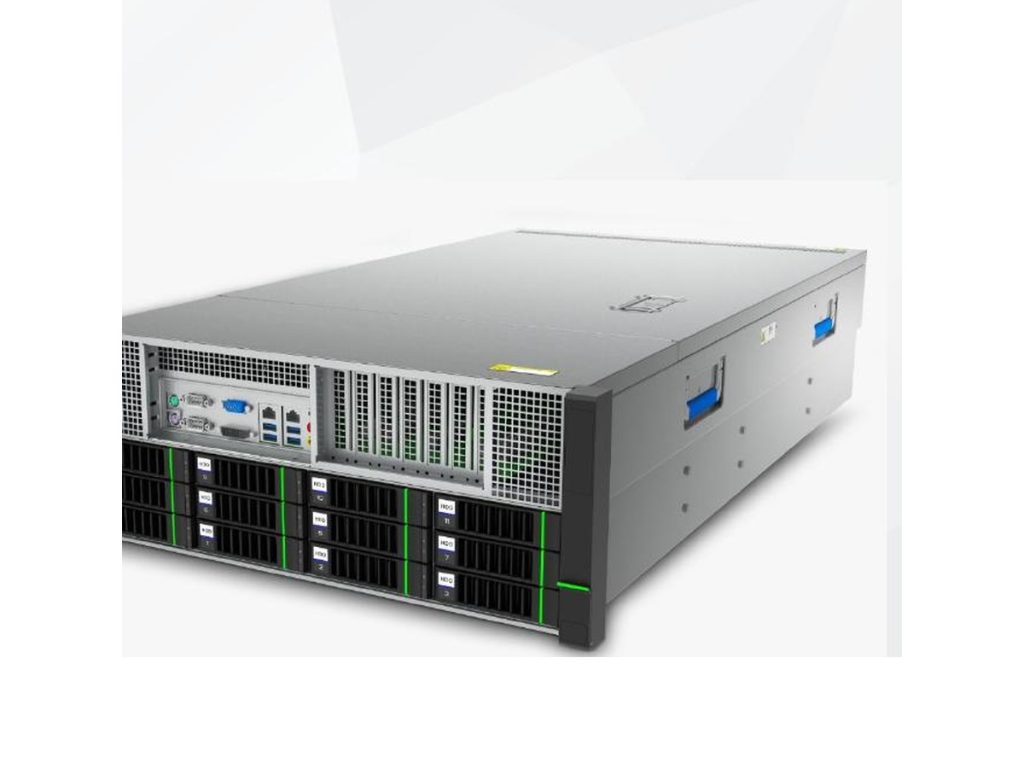

CR412-880-GS is a production server chassis platform for buyers who need a documented fit, serviceable drive access, and a clear configuration path before ordering. The product image is taken from HY Technology’s 2026 server chassis catalog.
Verified configuration
| Model / variants | CR412-880-GS |
|---|---|
| Form factor | 4U rack-mount |
| Dimensions | 880 x 447 x 174 mm (L x W x H) |
| Drive size and bays | 12 x 3.5-inch/2.5-inch hot-swap bays with 4 x NVMe + 8 x SAS/SATA support |
| Backplane / interfaces | 4 x NVMe + 8 x SAS/SATA 3.5-inch/2.5-inch hot-swap; GPU baseboard with 2 x PCIe 4.0/5.0 switch chips |
| Motherboard compatibility | E-ATX / ATX / Micro-ATX |
| Hot-swap method | 12 front hot-swap bays |
| Cooling | 8 x 8056 internal PWM fans; optional 4 x 8038 rear modules |
| Power supply | 4 x CRPS PSU power board, up to 3200W per module, N+1 |
| Material | Premium high-strength steel with protective surface treatment |
| Expansion / GPU support | 10 x dual-slot full-height full-length GPUs and 21 x full-height PCIe slots |
| Typical applications | AI inference, training, HPC, and dense multi-GPU data center systems |
Buyer questions
Which server drive tray fits this model?
Confirm the target drive size, backplane type, and original tray or server part number. HY can check the tray fit against the chassis configuration before quotation.
Does this chassis support 2.5-inch SAS and SATA drives?
Compatibility depends on the listed bay type and backplane. Send the drive interface, drive height, and target quantity so HY can confirm the correct SAS, SATA, or NVMe option.
What information is needed for a bulk quotation?
Send the model or variant, quantity, destination country, required backplane, PSU redundancy, motherboard or GPU platform, and packaging requirements. HY can then confirm availability, lead time, and the export quotation.
Recommended sourcing use: AI inference, training, HPC, and dense multi-GPU data center systems.
| Model | CR412-880-GS |
|---|---|
| Form Factor | 4U rack-mount | 880 x 447 x 174 mm (L x W x H) |
| Drive Bays | 12 x 3.5-inch/2.5-inch hot-swap bays with 4 x NVMe + 8 x SAS/SATA support |
| Board Support | E-ATX / ATX / Micro-ATX |
| Cooling | 8 x 8056 internal PWM fans; optional 4 x 8038 rear modules |
| Material | Premium high-strength steel with protective surface treatment |
| Dimensions | 880 x 447 x 174 mm (L x W x H) |
| Backplane / Interfaces | 4 x NVMe + 8 x SAS/SATA 3.5-inch/2.5-inch hot-swap; GPU baseboard with 2 x PCIe 4.0/5.0 switch chips |
| Hot-Swap Method | 12 front hot-swap bays |
| Power Supply | 4 x CRPS PSU power board, up to 3200W per module, N+1 |
| Expansion / GPU Support | 10 x dual-slot full-height full-length GPUs and 21 x full-height PCIe slots |
| Typical Applications | AI inference, training, HPC, and dense multi-GPU data center systems |
| Compatible Models | E-ATX / ATX / Micro-ATX |
