Product detail

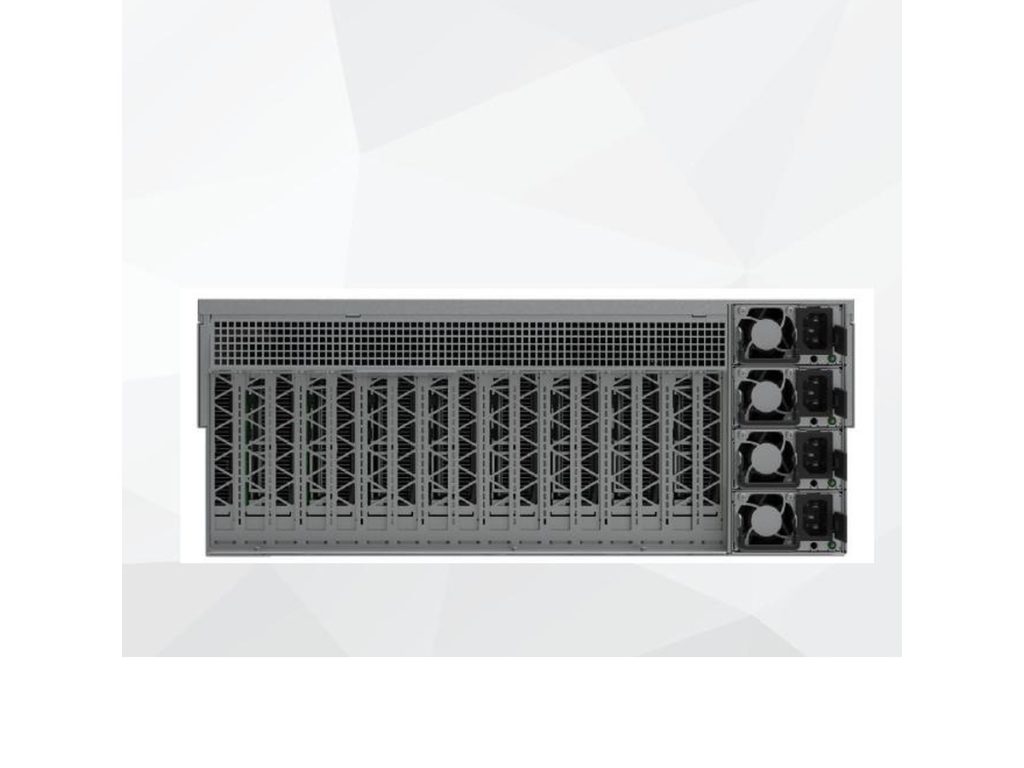

AS412 4U 4-GPU Triple-Fan Server Chassis
AS412-880-G4 is a production server chassis platform for buyers who need a documented fit, serviceable drive access, and a clear configuration path before ordering. The product image is taken from HY Technology’s 2026 server chassis catalog.
Verified configuration
| Model / variants | AS412-880-G4 |
|---|---|
| Form factor | 4U rack-mount |
| Dimensions | 880 x 447 x 174 mm (L x W x H) |
| Drive size and bays | 12 x 3.5-inch front hot-swap bays |
| Backplane / interfaces | Supports optional 4/12-bay NVMe/SAS/SATA hybrid backplane |
| Motherboard compatibility | X11DPG-QT / X12DPG-QT6 XL-size board; compatible with EATX and smaller |
| Hot-swap method | 12 front hot-swap bays with modular service access |
| Cooling | 8 x 8038/8056 internal high-speed PWM fans |
| Power supply | 4 x 2000W PSU module power board with N+N redundancy |
| Material | Premium high-strength steel with protective surface treatment |
| Expansion / GPU support | 4 x triple-fan GPUs including RTX 5090-class cards; 16 x full-height + 7 x half-height PCIe slots |
| Typical applications | High-density AI training, supercomputing, and triple-fan GPU systems |
Buyer questions
Which server drive tray fits this model?
Confirm the target drive size, backplane type, and original tray or server part number. HY can check the tray fit against the chassis configuration before quotation.
Does this chassis support 2.5-inch SAS and SATA drives?
Compatibility depends on the listed bay type and backplane. Send the drive interface, drive height, and target quantity so HY can confirm the correct SAS, SATA, or NVMe option.
What information is needed for a bulk quotation?
Send the model or variant, quantity, destination country, required backplane, PSU redundancy, motherboard or GPU platform, and packaging requirements. HY can then confirm availability, lead time, and the export quotation.
Recommended sourcing use: High-density AI training, supercomputing, and triple-fan GPU systems.
| Model | AS412-880-G4 |
|---|---|
| Form Factor | 4U rack-mount | 880 x 447 x 174 mm (L x W x H) |
| Drive Bays | 12 x 3.5-inch front hot-swap bays |
| Board Support | X11DPG-QT / X12DPG-QT6 XL-size board; compatible with EATX and smaller |
| Cooling | 8 x 8038/8056 internal high-speed PWM fans |
| Material | Premium high-strength steel with protective surface treatment |
| Dimensions | 880 x 447 x 174 mm (L x W x H) |
| Backplane / Interfaces | Supports optional 4/12-bay NVMe/SAS/SATA hybrid backplane |
| Hot-Swap Method | 12 front hot-swap bays with modular service access |
| Power Supply | 4 x 2000W PSU module power board with N+N redundancy |
| Expansion / GPU Support | 4 x triple-fan GPUs including RTX 5090-class cards; 16 x full-height + 7 x half-height PCIe slots |
| Typical Applications | High-density AI training, supercomputing, and triple-fan GPU systems |
| Compatible Models | X11DPG-QT / X12DPG-QT6 XL-size board; compatible with EATX and smaller |
