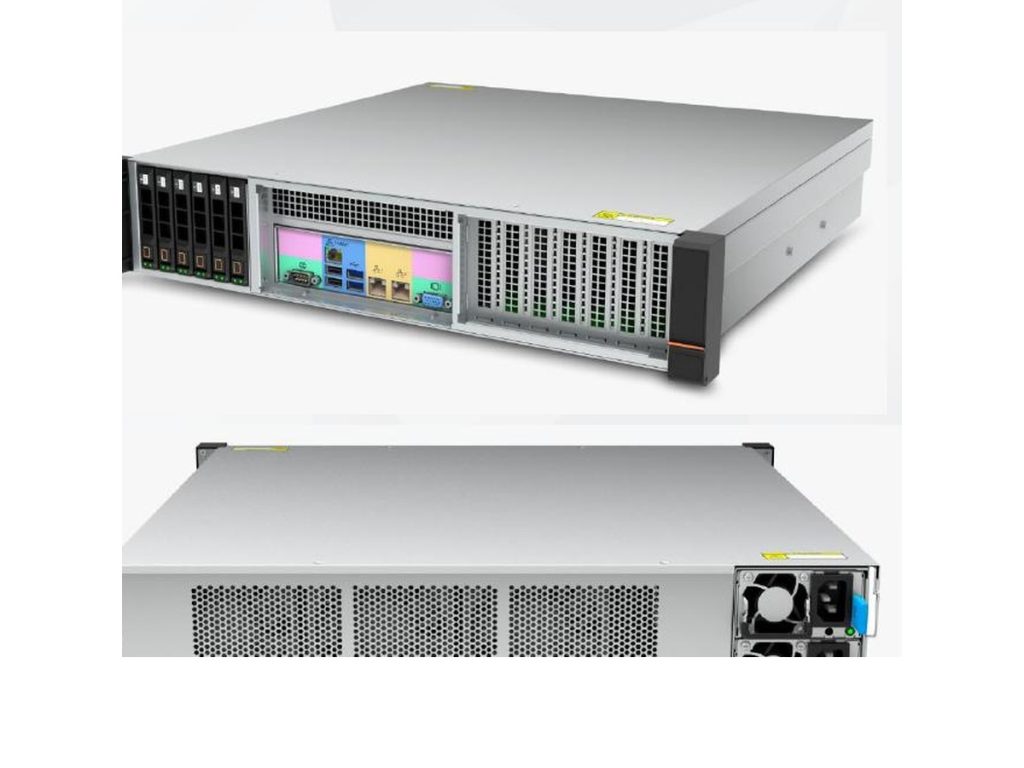

CR206 2U 6-Bay Short-Depth Edge Server Chassis
CR206-450-H is a production server chassis platform for buyers who need a documented fit, serviceable drive access, and a clear configuration path before ordering. The product image is taken from HY Technology’s 2026 server chassis catalog.
Verified configuration
| Model / variants | CR206-450-H |
|---|---|
| Form factor | 2U rack-mount |
| Dimensions | 450 x 436 x 87 mm (L x W x H) |
| Drive size and bays | 4 x 2.5-inch front hot-swap bays, expandable to 6 x 2.5-inch; optional rear 2 x 2.5-inch hot-swap bays |
| Backplane / interfaces | 2.5-inch hot-swap storage platform; confirm interface option for quotation |
| Motherboard compatibility | E-ATX / ATX / Micro-ATX |
| Hot-swap method | Up to 6 front 2.5-inch hot-swap bays plus optional rear hot-swap bays |
| Cooling | 3 x 8038 hot-swap high-speed PWM fans |
| Power supply | Single or redundant PSU support |
| Material | Premium SGCC hot-dip galvanized steel |
| Expansion / GPU support | 7 x half-height PCIe slots; optional rear conversion |
| Typical applications | Edge data centers, industrial internet, remote compute, and compact storage servers |
Buyer questions
Which server drive tray fits this model?
Confirm the target drive size, backplane type, and original tray or server part number. HY can check the tray fit against the chassis configuration before quotation.
Does this chassis support 2.5-inch SAS and SATA drives?
Compatibility depends on the listed bay type and backplane. Send the drive interface, drive height, and target quantity so HY can confirm the correct SAS, SATA, or NVMe option.
What information is needed for a bulk quotation?
Send the model or variant, quantity, destination country, required backplane, PSU redundancy, motherboard or GPU platform, and packaging requirements. HY can then confirm availability, lead time, and the export quotation.
Recommended sourcing use: Edge data centers, industrial internet, remote compute, and compact storage servers.
| Model | CR206-450-H |
|---|---|
| Form Factor | 2U rack-mount | 450 x 436 x 87 mm (L x W x H) |
| Drive Bays | 4 x 2.5-inch front hot-swap bays, expandable to 6 x 2.5-inch; optional rear 2 x 2.5-inch hot-swap bays |
| Board Support | E-ATX / ATX / Micro-ATX |
| Cooling | 3 x 8038 hot-swap high-speed PWM fans |
| Material | Premium SGCC hot-dip galvanized steel |
| Dimensions | 450 x 436 x 87 mm (L x W x H) |
| Backplane / Interfaces | 2.5-inch hot-swap storage platform; confirm interface option for quotation |
| Hot-Swap Method | Up to 6 front 2.5-inch hot-swap bays plus optional rear hot-swap bays |
| Power Supply | Single or redundant PSU support |
| Expansion / GPU Support | 7 x half-height PCIe slots; optional rear conversion |
| Typical Applications | Edge data centers, industrial internet, remote compute, and compact storage servers |
| Compatible Models | E-ATX / ATX / Micro-ATX |
