Product detail

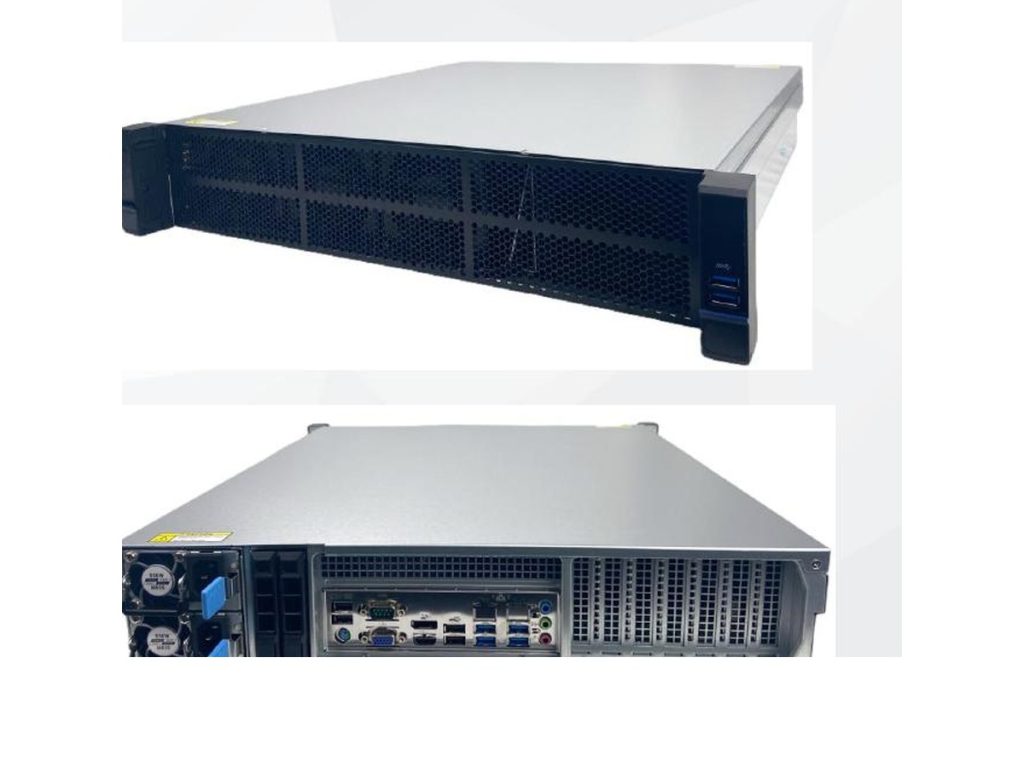

CR203 2U 450mm Short-Depth Edge Server Chassis
CR203-450 is a production server chassis platform for buyers who need a documented fit, serviceable drive access, and a clear configuration path before ordering. The product image is taken from HY Technology’s 2026 server chassis catalog.
Verified configuration
| Model / variants | CR203-450 |
|---|---|
| Form factor | 2U rack-mount |
| Dimensions | 450 x 436 x 87 mm (L x W x H) |
| Drive size and bays | 3 x internal 3.5-inch bays; optional rear 2 x 2.5-inch hot-swap bays |
| Backplane / interfaces | Internal drive configuration; rear hot-swap option available |
| Motherboard compatibility | E-ATX / ATX / Micro-ATX |
| Hot-swap method | Optional rear 2 x 2.5-inch hot-swap bays and hot-swap fan modules |
| Cooling | 3 x 8038 hot-swap high-speed PWM fans |
| Power supply | Single or redundant PSU support |
| Material | Premium SGCC hot-dip galvanized steel |
| Expansion / GPU support | 7 x half-height PCIe slots; optional rear conversion |
| Typical applications | Edge data centers, industrial internet, high-density compute, and remote sites |
Buyer questions
Which server drive tray fits this model?
Confirm the target drive size, backplane type, and original tray or server part number. HY can check the tray fit against the chassis configuration before quotation.
Does this chassis support 2.5-inch SAS and SATA drives?
Compatibility depends on the listed bay type and backplane. Send the drive interface, drive height, and target quantity so HY can confirm the correct SAS, SATA, or NVMe option.
What information is needed for a bulk quotation?
Send the model or variant, quantity, destination country, required backplane, PSU redundancy, motherboard or GPU platform, and packaging requirements. HY can then confirm availability, lead time, and the export quotation.
Recommended sourcing use: Edge data centers, industrial internet, high-density compute, and remote sites.
| Model | CR203-450 |
|---|---|
| Form Factor | 2U rack-mount | 450 x 436 x 87 mm (L x W x H) |
| Drive Bays | 3 x internal 3.5-inch bays; optional rear 2 x 2.5-inch hot-swap bays |
| Board Support | E-ATX / ATX / Micro-ATX |
| Cooling | 3 x 8038 hot-swap high-speed PWM fans |
| Material | Premium SGCC hot-dip galvanized steel |
| Dimensions | 450 x 436 x 87 mm (L x W x H) |
| Backplane / Interfaces | Internal drive configuration; rear hot-swap option available |
| Hot-Swap Method | Optional rear 2 x 2.5-inch hot-swap bays and hot-swap fan modules |
| Power Supply | Single or redundant PSU support |
| Expansion / GPU Support | 7 x half-height PCIe slots; optional rear conversion |
| Typical Applications | Edge data centers, industrial internet, high-density compute, and remote sites |
| Compatible Models | E-ATX / ATX / Micro-ATX |
